What are the main challenges to consider for grain mill doors?

Commercial grain mills face energy-intensive processes (grinding, drying, conveying) while meeting strict quality control and food safety regulations including dust control and mycotoxin management. Grain mills are also high traffic environments which demand high cycle door performance.  Farm sheds face similar hurdles plus the need for automated security to protect expensive equipment and stored crops from theft and vandalism.

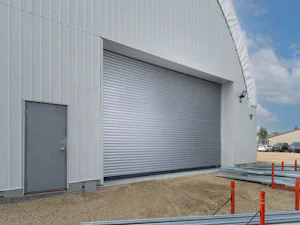

Traditional manually operated doors and crude security measures can't meet these demands. Leaving doors open causes up to 3% product loss from wind and contamination from birds and rodents. Standard rolling steel doors struggle in high winds, and fine grain particles jam their guides and slats, drastically reducing service life.

While the EPA doesn't mandate specific door types, regulations effectively require:

• Enclosing receiving/loading areas with properly functioning doors to control dust
• Adequate sealing of the opening to prevent fugitive dust emissions
• Operational doors that remain closed during grain transfer operations to minimize dust escape

For commercial grain mills, the key is selecting doors that support dust containment strategies and maintain proper enclosure of dust-generating operations to comply with air quality standards, which may require explosion proof components.

Why are chain drive rubber doors the best solution for grain mills?

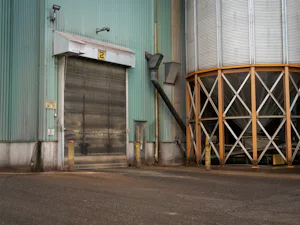

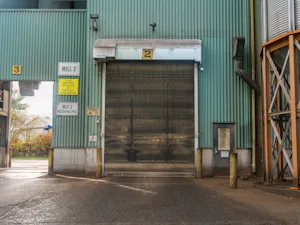

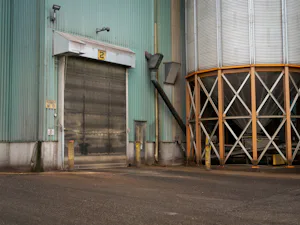

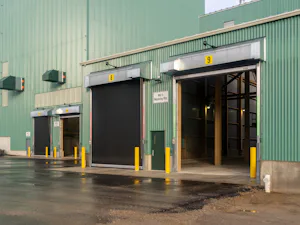

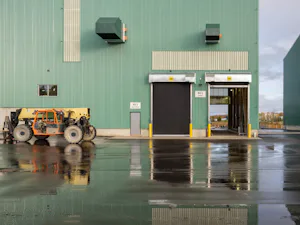

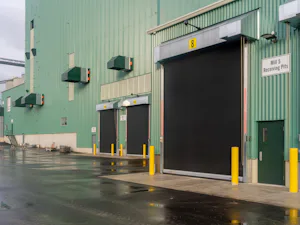

The HD-CD 3025 high-speed rubber doors solve multiple challenges simultaneously:

• Security & Product Protection Fast operation with tight seals keeps out weather, pests, and unauthorized access while preventing wind-driven product loss.
• Superior Performance in Extreme Conditions One-piece rubber curtains and tight guide seals eliminate grain particle buildup. Springless design removes common failure points. Doors operate reliably despite high winds and downdraft effects from tall silos.
• Vehicle Impact Resistance Heavy truck traffic means frequent impacts. Rolling steel doors require weeks of downtime for repairs. HD SERIES rubber doors reset in minutes—no replacement, no extended downtime.

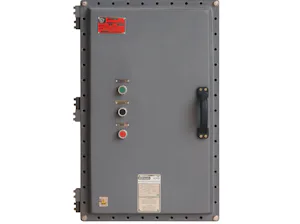

• Explosion Prevention Grain dust is highly explosive—airborne organic particles from wheat, corn, soy, and oats ignite from electrical sparks. Hörmann offers exterior mounting options and NEMA 7/9 rated components to meet stringent explosion-proof requirements and prevent catastrophic accidents.

The Result: Automated security, energy efficiency, product protection, and regulatory compliance—all from one door system designed specifically for agricultural demands.

A note about explosion proof requirements:

Commercial grain mills always require explosion-proof equipment in processing areas.

Examples of areas in commercial grain mills where explosion-proof equipment may be required include:

• Bucket elevators
• Conveyors and transfer points
• Grain dryers
• Grinding and milling machines
• Dust collection systems

Commercial farm sheds and storage buildings sometimes require explosion-proof equipment in the following environments:

• Where grain is processed, dried and transferred inside the shed.
• If electrical equipment is installed in dusty areas near augers or hoppers.
• If the shed also stores fertilizers or chemicals; vapors could pose an explosion risk.

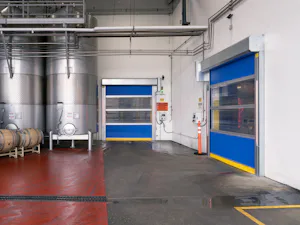

Speed-Master® high-speed fabric doors

Segregated Storage Areas

Modern mills producing multiple feed varieties require individualized segregated storage to avoid cross-contamination among organic, conventional, GMO-free, and antibiotic-free products. These busy locations need tough, dependable doors that reliably and effectively separate environments, with the ability to handle high-cycle use – as many as 100 cycles per day or more. Speed-Master® high-speed, high-performance doors are designed for abusive environments; they open and close at up to 5 feet per second so equipment can pass through quickly and effective separation can be maintained between rooms. Hörmann has five Speed-Master® models to choose from, ensuring there's a solution that fits these demanding applications.

Integration with Milling Equipment

Storage barns typically integrate with the overall milling process through truck and rail receiving systems, conveyor systems that move grain from storage to processing equipment, aeration systems used to maintain grain quality during storage, and automated handling such as sliding gates and augers, which control material flow. High-speed, high-performance doors such as the Speed-Master® may be installed to work in conjunction with any of these processing locations. As in segregated storage areas where doors need to open and close fast, the Speed-Master® provides the speed, durability, and reliability necessary to keep operations running smoothly while protecting product integrity and maintaining environmental control throughout the milling process.
