Heritage Classic E-Series

Handcrafted Wood Carriage House Style Garage Doors

Handcrafted by skilled artisans from select woods such as cedar, tight knot cedar, redwoods, knotty alder, VG fir, meranti, and other fine woods, the Heritage Classic™ is one of finest carriage house style garage doors Hörmann offers. The distinctive carriage house look makes it easy to match doors on a detached garage or barn with doors on your home.

Although they resemble old-fashioned swing doors, Heritage Classic™ garage doors are constructed with completely modern materials. Unique features include heavy-duty wood frame, 3-section design, custom arches water break at the base of the door, and commercial grade industrial hardware.

The E Series has an overall thickness of 2-1/4”. Sectional / Overhead opening using automatic opening hardware that functions like a conventional roll-up garage door, is standard. For a traditional barn door look, Bi-Parting and One-Piece opening are options. With the Bi-Parting opening, one or both doors swing or slide open manually (operational hardware is by others). The One-Piece opening option is usually used as a manually operated sliding door (operational hardware is by others) but may be specified as a solid, one-piece automatic vertical lift door.

Durable and long-lasting, the distinctive look of the Heritage Classic™ will enhance the appeal of your home for many years to come.

Product Highlights

Characteristic
Insulation value	R-6.18 Thermal Rating
Material	Wood
Thickness	2¼"
Design options	Various designs
Colors	Natural wood + field paint option

Image Gallery

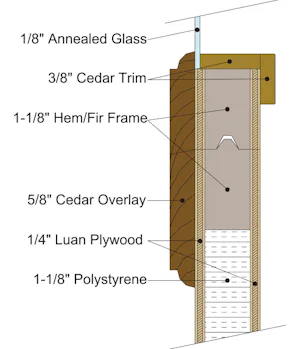

Panel Construction

The industry leader in innovative door safety, insulation, and strength

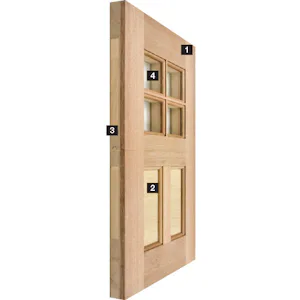

Profile

5/8” Clear Western Red Cedar Overlay with 7/16” profile bead where edges are exposed
1/4” Luan Plywood Face
Frame: Nominal 1-1/8” Finger-Joint Kiln dried HEM/FIR, Double End Stiles (standard on all doors)
Windows: True divided, stopped and sealed position 1/8” clear annealed glass (standard on all doors)
